人类学学报 ›› 2023, Vol. 42 ›› Issue (01): 137-148.doi: 10.16359/j.1000-3193/AAS.2022.0016
收稿日期:
2021-04-17
修回日期:
2022-05-06
出版日期:
2023-02-15
发布日期:
2023-02-20
作者简介:
李海军,副教授,主要从事体质人类学研究。E-mail: 基金资助:
LI Haijun1(), WENG Minjie1, DUAN Wanqi2, LIU Liming3
Received:
2021-04-17
Revised:
2022-05-06
Online:
2023-02-15
Published:
2023-02-20
摘要:
口唇部是主要的面部形态区域之一,具有重要的生理功能。嘴唇保护口腔免受外部物质的渗透,维持口腔内部的湿度和温度,帮助咀嚼,同时也是外科美容整形手术中的主要部位之一,且在法医物证研究中唇纹也具有重要的鉴别价值。目前关于口唇部形态的研究主要包括以下几个方面:口唇部形态变异的性别、年龄、族群差异;影响口唇部形态变异的因素,如遗传基因、饮食结构、牙齿及颌骨形态和呼吸方式等;口唇部形态研究在医学、个人身份识别及法医刑侦领域的相关应用等。国内口唇部形态研究相对较少,尤其缺乏较为系统的口唇部形态生长发育及变异研究。本文通过梳理和归纳国内外相关文献的研究数据和结论,对口唇部形态相关研究作简要概述,并对国内口唇部生长发育及形态变异研究作了简要回顾和展望。
中图分类号:
李海军, 翁敏洁, 段琬琪, 刘力铭. 人类口唇部形态变异的研究进展[J]. 人类学学报, 2023, 42(01): 137-148.
LI Haijun, WENG Minjie, DUAN Wanqi, LIU Liming. The study progress of the morphological variation of human orolabial region[J]. Acta Anthropologica Sinica, 2023, 42(01): 137-148.

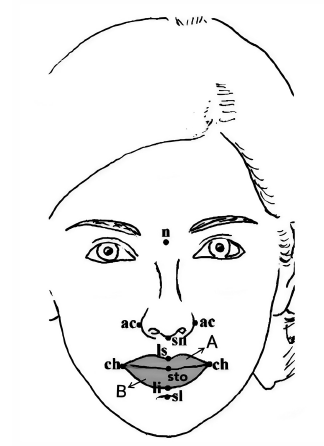

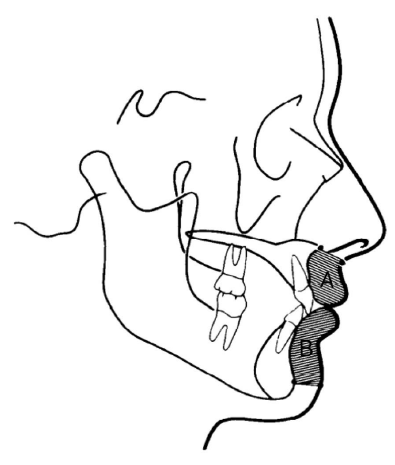

图1 口唇部各线性距离位置示意[3]及上下红唇面积测量[1] 线性数据Linear data:1.鼻宽Nasal breadth(acr-acl); 2.口裂宽Mouth breadth(chr-chl); 3.总唇高Total lip height(sn-sl);4.全上唇高Upper lip height(sn-sto);5.全下唇高Lower lip height(sto-sl);6.总红唇高Total vermilion height(ls-li);7.上红唇高Upper vermilion height(ls-sto);8.下红唇高Lower vermilion height(sto-li)。 sto:stomion,口裂点,即上下唇闭合时,口裂的正中点;A.上红唇面积Upper lip vermilion;B.下红唇面积Lower lip vermilion;总红唇面积=上红唇面积(A)+下红唇面积(B)Total lip vermilion=Upper lip vermilion (A) +Lower lip vermilion (B)。
Fig.1 Linear distances measured[3] and area measured for upper/lower lip vermilion[1]
性别 Sex | 项目Items | 口裂宽 Mouth b | 总唇高 Lip H | 全上唇高Upper Lip H | 下唇体积 Lower Lip V | 下红唇面积Lower Lip S |
---|---|---|---|---|---|---|
男性Male | 总红唇Vermilion H | 0.151N | ||||
鼻Nose b | 0.202N | |||||
鼻Nose h | 0.045N | 0.054N | ||||
上唇Upper lip V | 0.379* | |||||
上红唇Upper lip S | 0.190N | |||||
女性Female | 总红唇Vermilion H | 0.050N | ||||
鼻Nose b | 0.402* | |||||
鼻Nose h | 0.111N | 0.169N | ||||
上唇Upper lip V | 0.492* | |||||
上红唇Upper lip S | 0.169NS |
表1 口唇、鼻变量之间的线性相关及显著性[3]
Tab.1 Linear Correlation Coefficients between Selected Variables and Relevant Significance Levels[3]
性别 Sex | 项目Items | 口裂宽 Mouth b | 总唇高 Lip H | 全上唇高Upper Lip H | 下唇体积 Lower Lip V | 下红唇面积Lower Lip S |
---|---|---|---|---|---|---|
男性Male | 总红唇Vermilion H | 0.151N | ||||
鼻Nose b | 0.202N | |||||
鼻Nose h | 0.045N | 0.054N | ||||
上唇Upper lip V | 0.379* | |||||
上红唇Upper lip S | 0.190N | |||||
女性Female | 总红唇Vermilion H | 0.050N | ||||
鼻Nose b | 0.402* | |||||
鼻Nose h | 0.111N | 0.169N | ||||
上唇Upper lip V | 0.492* | |||||
上红唇Upper lip S | 0.169NS |
[1] |
Sawyer AR, See M, Nduka C. 3D Stereophotogrammetry Quantitative Lip Analysis[J]. Aesthetic Plastic Surgery, 2009, 33(4): 497-504
doi: 10.1007/s00266-008-9191-1 URL |
[2] |
Mamandras AH. Growth of Lips in Two Dimensions: A Serial Cephalometric Study[J]. American Journal of Orthodontics, 1984, 86(1): 61-66
pmid: 6588761 |
[3] |
Ferrario VF, Sforza C, Serrao G, et al. A Three-Dimensional Quantitative Analysis of Lips in Normal Young Adults[J]. The Cleft Palate-Craniofacial Journal, 2000, 37(1): 48-54
doi: 10.1597/1545-1569_2000_037_0048_atdqao_2.3.co_2 URL |
[4] |
Sforza C, Grandi G, Binelli M, et al. Age-and Sex-related Changes in Three-dimensional Lip Morphology[J]. Forensic Science International, 2010, 200(1): 182. e1-182.e7
doi: 10.1016/j.forsciint.2010.02.035 URL |
[5] | 郑连斌, 陆舜华, 张兴华, 等. 中国图瓦人体质特征[J]. 人类学学报, 2013, 32(2): 182-192 |
[6] | 郑连斌, 李咏兰, 陆舜华, 等. 中国客家人体质特征[J]. 中国科学(生命科学), 2013, 43(3): 213-222 |
[7] |
Kim H, Lee M, Park SY, et al. Age- related Changes in Lip Morphological and Physiological Characteristics in Korean women[J]. Skin Research and Technology, 2019, 25(3): 277-282
doi: 10.1111/srt.12644 URL |
[8] |
Lévêque JL, Goubanova E. Influence of Age on the Lips and Perioral Skin[J]. Dermatology, 2004, 208(4): 307-313
pmid: 15178912 |
[9] |
Tamura E, Ishikawa J, Sugata K, et al. Age-related Differences in the Functional Properties of Lips Compared with Skin[J]. Skin Research and Technology, 2018, 24(3): 472-478
doi: 10.1111/srt.12456 pmid: 29405429 |
[10] | 李咏兰, 郑连斌, 宇克莉, 等. 南方汉族人头面部形态特征的年龄变化[J]. 科学通报, 2013, 58(4): 336-343 |
[11] | Smith OAM, Nashed YSG, Duncan C, et al. 3D Modeling of Craniofacial Ontogeny and Sexual Dimorphism in Children[J]. American Association for Anatomy, 2020, 304: 1918-1926 |
[12] | Mamandras AH. Linear Changes of the Maxillary and Mandibular Lips[J]. American Journal of Orthodontics & Dentofacial Orthopedics, 1988, 94(5): 405-410 |
[13] |
Ferrario VF, Sforza C, Schmitz JH, et al. Normal Growth and Development of the Lips: a 3-dimensional study from 6 years to Adulthood Using a Geometric Model[J]. Journal of Anatomy, 2000, 196(3): 415-423
doi: 10.1046/j.1469-7580.2000.19630415.x URL |
[14] | Wong WW, Davis DG, Camp MC, et al. Contribution of Lip Proportions to Facial Aesthetics in Different Ethnicities: A Three-dimensional Analysis[J]. Journal of Plastic, Reconstructive & Aesthetic Surgery, 2010, 63(12): 2032-2039 |
[15] |
Houlton TM, Jooste N, Uys A, et al. Lip Height Estimation in a Southern African Sample[J]. South Africa Dental Journal, 2020, 75(8): 415-424
doi: 10.17159/2519-0105/2020/v75no8a1 URL |
[16] | Miyajima K, McNamara JA, Kimura T, et al. Craniofacial Structure of Japanese and European-American Adults with Normal Occlusions and Well-balanced Faces[J]. American Journal of Orthodontics & Dentofacial Orthopedics, 1996, 110(4): 431-438 |
[17] |
Islam M, Alam MK, Yusof A. 3D CT Soft Tissue Craniofacial Analysis and Lip Morphology[J]. Pesquisa Brasileira em Odontopediatria e Clínica Integrada, 2021, 21: e0077
doi: 10.1590/pboci.2021.036 URL |
[18] |
He HY, Mi X, Zhang JY, et al. Correlation between Facial Morphology and Gene Polymorphisms in the Uygur youth population[J]. Oncotarget, 2017, 8(17): 28750-28757
doi: 10.18632/oncotarget.16187 pmid: 28415752 |
[19] |
Peng SN, Tan JZ, Hu SL, et al. Detecting Genetic Association of Common Human Facial Morphological Variation Using High Density 3D Image Registration[J]. PLoS Computational Biology, 2013, 9(12): e1003375
doi: 10.1371/journal.pcbi.1003375 URL |
[20] |
Goodwin AF, Larson JR, Jones KB, et al. Craniofacial Morphometric Analysis of Individuals with X-linked Hypohidrotic Ectodermal Dysplasia[J]. Molecular Genetics and Genomic Medicine, 2014, 2(5): 422-429
doi: 10.1002/mgg3.84 pmid: 25333067 |
[21] |
Hockett CF. Distinguished Lecture: F[J]. American Anthropologist. 1985, 87(2): 263-281
doi: 10.1525/aa.1985.87.2.02a00020 URL |
[22] | Tanikawa C, Takada K. Objective Classification of Nose-lip-chin Profiles and their relation to Dentoskeletal Traits[J]. Orthodontics & Craniofacial Research, 2015, 17(4): 226-238 |
[23] | 陈菁菁, 齐景, 袁洁莹, 等. Twin-block与MRC矫治生长高峰期伴口呼吸的骨性II类疗效分析[J]. 临床口腔医学杂志, 2021, 37(2): 98-102 |
[24] |
Souki BQ, Lopes PB, Veloso NC, et al. Facial Soft Tissues of Mouth-breathing Children: Do Expectations Meet Reality[J]. International Journal of Pediatric Otorhinolaryngology, 2014, 78(7): 1074-1079
doi: 10.1016/j.ijporl.2014.04.008 URL |
[25] |
Zhu LY, Meng T, Shi B, et al. Anthropometric Study of the Upper Lip of 1500 Healthy Children in Chengdu, Western China[J]. British Journal of Oral and Maxillofacial Surgery, 2008, 46(7): 554-560
doi: 10.1016/j.bjoms.2008.02.014 URL |
[26] |
Mori A, Nakajima T, Kaneko T, et al. Analysis of 109 Japanese Children’s Lip and Nose Shapes using 3-dimensional Digitizer[J]. British Journal of Plastic Surgery, 2005, 58(3): 318-329
doi: 10.1016/j.bjps.2004.11.019 URL |
[27] |
Kirschneck C, Proff P, Reicheneder C, et al. Short-term Effects of Systematic Premolar Extraction on Lip Profile, Vertical Dimension and Cephalometric Parameters in Margin Line Patients for Extraction Therapy-- a Retrospective Cohort Study[J]. Clinical Oral Investigations, 2016, 20(4): 865-874
doi: 10.1007/s00784-015-1574-5 pmid: 26349767 |
[28] |
Guan YX, Xin L, Tian PF, et al. Effect of Soft Tissue Thickness on the Morphology of Lip in Orthodontic Treatment[J]. International Journal of Morphology, 2019, 37(4): 1245-1251
doi: 10.4067/S0717-95022019000401245 URL |
[29] | Wrobel K, Doroz R, Palys M Eds. Lip Print Recognition Method using Bifurcations Analysis[C]. Intelligent Information and Database Systems, Pt Ⅱ, 2015, 72-81 |
[30] |
Shen XJ, Wang ZY, Wang Y, Chen HP. Dynamic Lip Identification Algorithm based on Automatic Calibration of Feature Points[J]. Journal of Information and Computational Science, 2015, 12(15): 5659-5665
doi: 10.12733/jics20106767 URL |
[31] | Zhao JM, Ji LL, Han MQ, et al. Lip Morphology Estimation models based on Three-dimensional Images in a Modern Adult Population from China[J]. International Journal of Legal Medicine, 2021, 135(5): 1-15 |
[32] | 史铀, 舒斌, 胡兴宇, 等. 口唇部活体测量及生长发育研究[J]. 人类学学报, 1996, 15(3): 241-249 |
[33] |
Guo J, Tan JZ, Yang YJ, et al. Variation and Signatures of Selection on the Human Face[J]. Journal of Human Evolution, 2014, 75: 143-152
doi: 10.1016/j.jhevol.2014.08.001 pmid: 25186351 |
[34] | 李海军, 徐晓娜. 青海土族和藏族侧面部轮廓形状及其变异:基于标志点的几何形态测量分析[J]. 科学通报, 2014, 59(16): 1516-1524 |
[35] |
Li HJ, Yang SB, Chen HM, et al. Morphometric Variations and Growth of the Profile of the Face in Chinese boys aged 4-15 years[J]. HOMO: Journal of Comparative Human Biology, 2020, 71(2): 83-90
doi: 10.1127/homo/2020/1196 URL |
[36] | 郑连斌, 张兴华, 胡莹, 等. 四川邛崃汉族头面部形态特征的年龄变化[J]. 中山大学学报(医学科学版), 2011, 32(6): 729-734+763 |
[37] | 李咏兰, 张兴华, 孙泽阳, 等. 中国人的头面部形态特征[J]. 人类学学报, 2021, 40(e): 1-13 |
[38] | 郑连斌, 李咏兰, 席焕久. 中国汉族体质人类学研究[M]. 北京: 科学出版社, 2017 |
[39] | 李咏兰, 郑连斌. 中国蒙古族体质人类学研究[M]. 北京: 科学出版社, 2018 |
