德国西宁根与中国灵井的骨器比较

doi:10.16359/j.1000-3193/AAS.2024.0022

摘要/Abstract

摘要：

相似性在人类体质、文化和技术等方面的演化过程中扮演着非常重要的角色。本文涉及到的两个遗址，位于德国的旧石器时代早期遗址西宁根13地点II-4 层和位于中国北方地区的旧石器时代中期灵井遗址10-11层，出土的考古遗存具有极大的相似性。两个遗址保存状况都非常好，且均出土有大量的石器和动物化石。最为引人注意的是，两个遗址出土的动物遗存特点以及骨器相关的遗存也表现出多个方面的相似性。经鉴定，两个遗址均出土有多个种属的食肉动物、一种象，两种犀牛属动物、两种马科动物，多种鹿类以及牛科动物。两个遗址均出土有修整石器所用的骨质软锤，以及利用食草动物的掌跖骨制作的用于砸骨吸髓的骨锤。这些锤子的远端具有特定的破裂形态。考虑到两个遗址之间的距离以及年代差异，这些相似性非常值得关注，但我们不认为两个遗址的相似性代表的是文化上的联系。相反，我们认为这种相似性反映的是人类在相似的环境中采取了相似的行为模式，同时相似的埋藏条件也起到一定的作用。

关键词: 旧石器时代, 露天遗址, 骨器, 中国, 欧洲

Abstract:

Similarities play an important role in the reconstruction of human physical, cultural and technological evolution. The two sites presented in this paper, the Middle Palaeolithic site Lingjing in China Layer 10 and 11 and the Lower Palaeolithic site Schöningen 13 II-4, the so-called Schöningen Spear Horizon in Germany, show striking similarities. The archaeological record of both sites includes lithic artifacts as well as a very large assemblage of fossil bones. The preservation of the material at both sites is excellent and the faunas encountered at both sites show many similarities. The faunal lists of both sites include a diverse carnivore guild, an elephant species, two different rhinoceros species, two different equids, different cervids and large bovids. Both sites also yielded bone retouchers as well as a unique record of bone hammers that show identical, unusual flaking and percussion damage.

These similarities are remarkable if one takes into account the difference in age (ca 200 kaBP) and the geographical distance between the two sites of ca 8000 km. Therefore, we do not assume a close cultural link between the hominin populations active at both sites. The authors assume that the observed similarities show more or less identical, opportunistic hominin behaviour at both sites located in a comparable environment with more or less similar taphonomic conditions.

Key words: Palaeolithic, open-air sites, bone tools, Asia, Europe

中图分类号:

K871.11

王华, 李占扬, Thijs van KOLFSCHOTEN. 德国西宁根与中国灵井的骨器比较[J]. 人类学学报, 2024, 43(02): 214-232.

WANG Hua, LI Zhanyang, Thijs van KOLFSCHOTEN. Comparison of bone artifacts from the Schöningen site in Germany and the Lingjing site in China[J]. Acta Anthropologica Sinica, 2024, 43(02): 214-232.

图/表 8

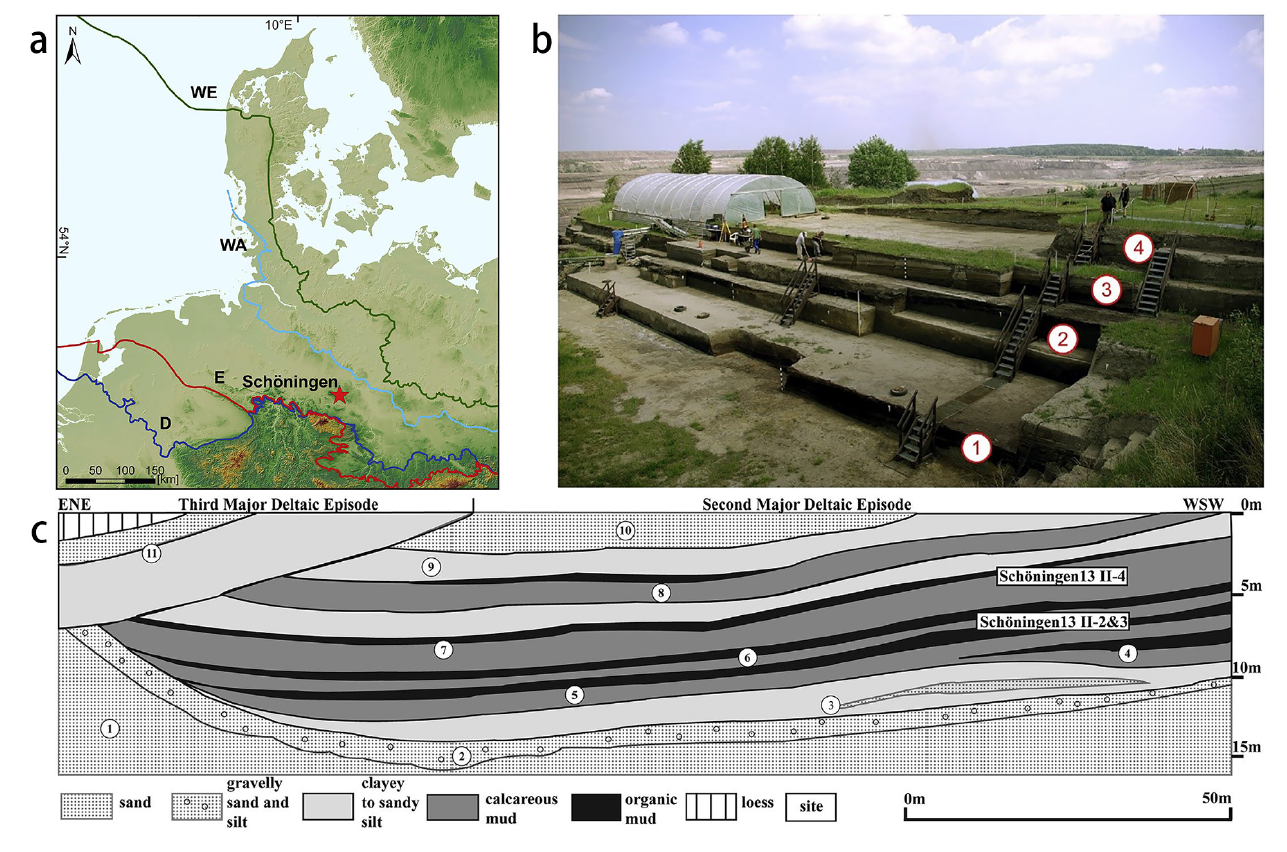

Fig.1 The Lower Palaeolithic site Schö 13 II-4 a. Location of Schöningen in Northern Germany. Green, light blue, red, and dark blue lines indicate the maximum extent of the glacial ice sheets (E = Elsterian; D = Saalian Drenthe; WA = Saalian Warthe; WE = Weichselian; modified from Lang et al[12];b. Reinsdorf Interglacial silting cycles of the Schöningen palaeolake, Schöningen 13 II-1 to II-4, with calcareous mud grading into an overlaying dark organic mud (May 2012)[20] Photo: Jordi Serangeli; c. Simplified, schematic sequence at Schöningen 13 II (after Stahlschmidt et al[59]). 1 and 2) Elsterian glaciolacustrine deposits; 3) Lacustrine deposits; 4-7) Reinsdorf Interglacial shallowing cycles of the lake Schöningen 13 II-1 to II-4, with calcareous mud grading into an overlaying dark organic mud: 4) cycle 1; 5) cycle 2; 6) cycle 3; 7) cycle 4; note the location of Schöningen 13 II-4 in cycle 4 and 13 II-2 and II-3 in cycles 2 and 3; 8) 5th shallowing cycle, composed of sandy silt and an overlaying dark organic mud; 9 and 10) Glaciolacustrine deposits; 11) Lacustrine deposits and loess.

Tab.1 List of larger mammalian taxa, including number of identified specimens (NISP), in the faunal assemblage from the Schö 13 II-4 locality (combined data from van Kolfschoten et al[21] and García-Moreno et al[32]) and in the Lingjing Layer 10 and 11 faunal assemblage (data from Wang et al[51] )

Taxa	Name	Common name	Schö 13 II-4	Lingjing
Carnivora	cf. Panthera leo spelaea	Eurasian cave lion	1
	Panthera tigris	Tiger		19
	Homotherium latidens	Saber-toothed cat	1
	Crocuta crocuta	Spotted hyena		10 (+ copr.)*
	Canis cf. lupus	Wolf	7	5
	Nyctereutes cf. procyonoides	Raccoon dog		2
	Vulpes cf. vulpes	Red fox	3	17
	Ursus sp.	Bear		5
	Meles cf. meles	Badger	5	7
	Mustela sp. (large mustelid)	Large mustelid	5
Proboscidea	Palaeoloxodon sp.	Straight-tusked elephant	1	2
Perissodactyla	Equus mosbachensis	Extinct horse	8890
	Equus cf. przewalskii	Przewalski's horse		378**
	Equus hemionus	Onager		378**
	Equus hydruntinus	European wild ass	8
	Stephanorhinus kirchbergensis	Merck's rhinoceros	1	3***
	Stephanorhinus hemitoechus	Narrow-nosed rhinoceros	1
	Coelodonta antiquitatis	Woolly rhinoceros		101***
Artiodactyla	Sus lydekkeri	wild boar		29
	Hydropotes pleistocenica	extinct water deer		3
	Capreolus capreolus	Roe deer	7
	Cervus (E.) elaphus	Red deer	340	89
	Cervus nippon	Sika deer		4
	Elaphurus davidianus	Père David's deer		1
	Megaloceros giganteus	Giant deer	7
	Sinomegaceros ordosianus	East Asian giant deer		6
	Bos primigenius	Aurochs	78	432****
	Bison priscus	Bison	59
	Bos/Bison indet		145
	Procapra przewalskii	Przewalski's gazelle		45

Fig.2 The dimensions of a Bison radius A) used as retoucher compared with the dimensions of a scraper and flint microdebitage B) from the Spear Horizon. The radius shows long scrape marks and knapping damage on the anterior face (modified by Silvia Bello, NHM London, after van Kolfschoten et al[10]).

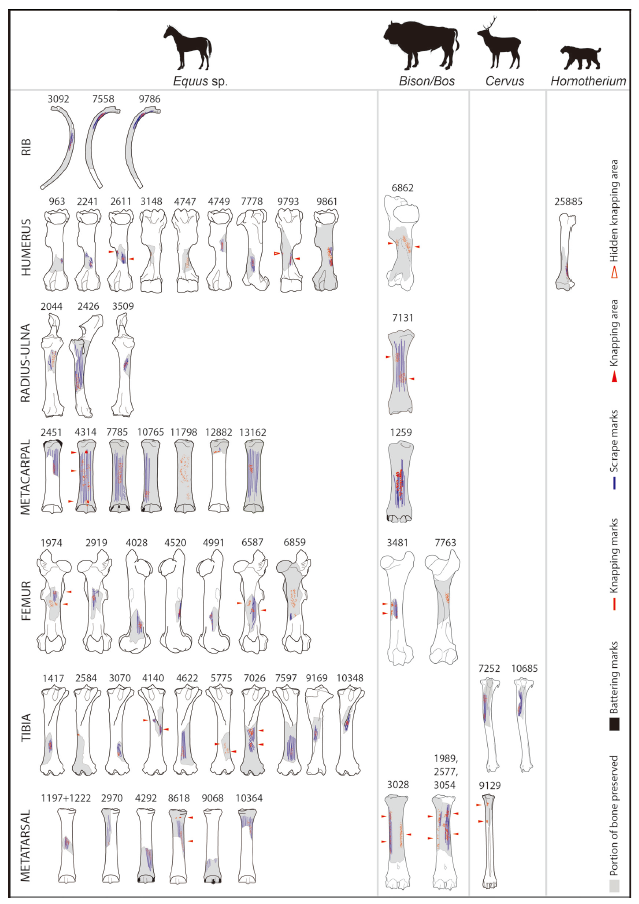

Fig.3 Knapping tools from Schöningen 13 II-4 arranged by taxon and anatomical element (not to scale) The arrows indicate multiple knapping areas on the same bone (van Kolfschoten et al[10])

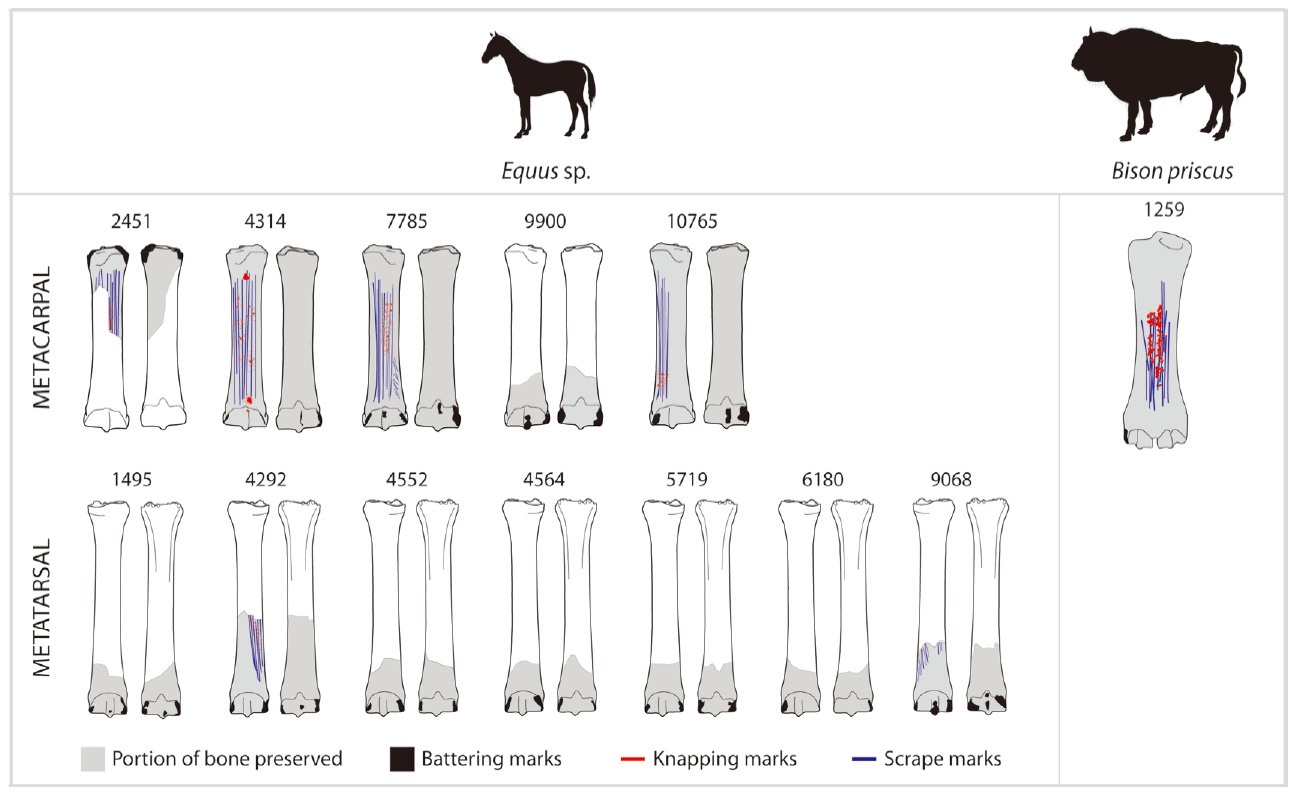

Fig.4 Metapodial hammers by taxon and anatomical element (not to scale) (van Kolfschoten et al[10])

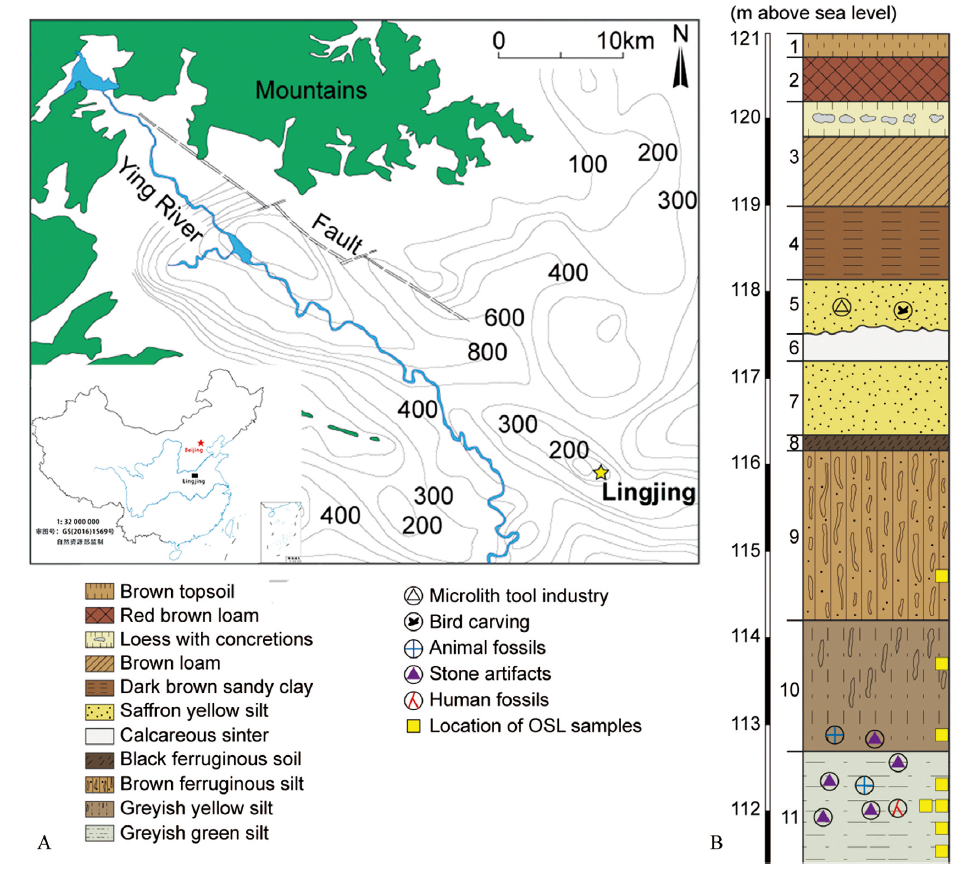

Fig.5 The Lingjing site in Henan of China A) Location of Lingjing (Henan, China); B) stratigraphy indicating the geological and cultural layers (after Doyon et al[42])

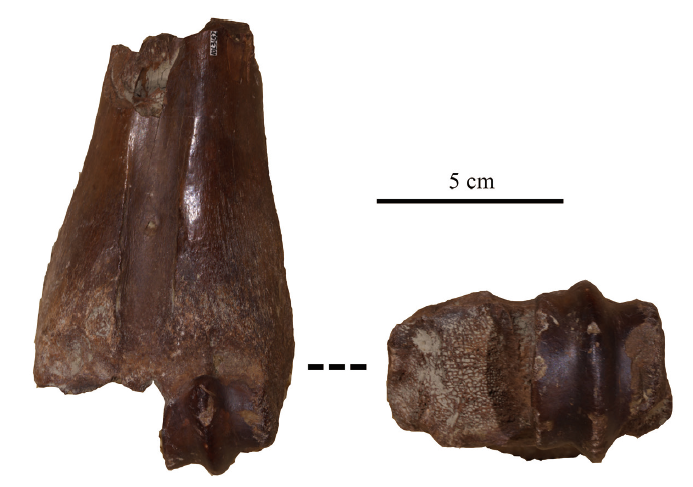

Fig.6 Metatarsal bone (10L361) assigned to Equus hemionus, with flaking, chipping and crushing damage at both the lateral and medial side of the epiphyse and crushing damage at medial ridge indicating the use as bone hammer

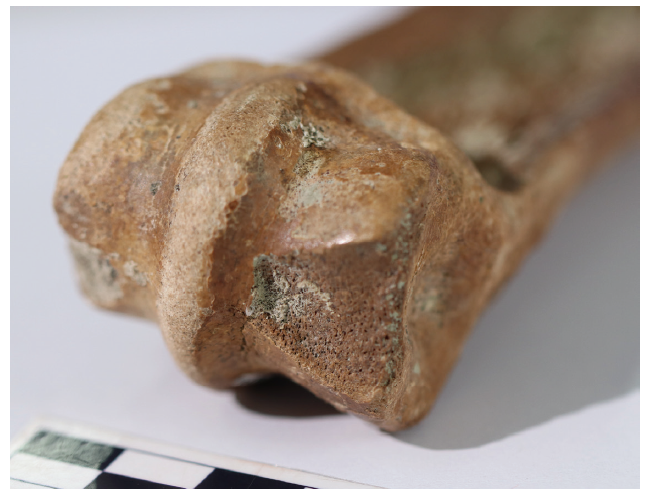

Fig.7 Metatarsal bone (10L3152) of an Aurochs Bos primigenius with obvious battering damage The outer edge of medial epiphyse show chipping and crushing damage and the lateral epiphyse is broken off.Left: anterior view; Right: distal view

参考文献 59

[1]	Iakovleva L. The architecture of mammoth bone circular dwellings of the Upper Palaeolithic settlements in Central and Eastern Europe and their socio-symbolic meanings. Quaternary International, 2015, 359-360: 324-334
[2]	Kuhn SL, Stiner MC. Hearth and home in the Middle Pleistocene. J. Anthropol. Res., 2019, 75: 305-327- doi: 10.1086/704145
[3]	Stiner MC. Honor Among Thieves:A Zooarchaeological Study of Neandertal Ecology. Princeton: NJ: Princeton University Press, 1994
[4]	Bunn HT, Gurtov AN. Prey mortality profiles indicate that Early Pleistocene Homo at Olduvai was an ambush predator. Quaternary International, 2013, 322-323: 44-53
[5]	Stringer C, Andrews P. The Complete World of Human Evolution. London: Thames & Hudson, 2005
[6]	Hutson JM, Villaluenga A, García-Moreno A, et al. On the use of metapodials as tools at Schöningen 13II-4. In: Hutson JM, García Moreno A, Noack ES, et al.(eds.). The Origins of Bone Tool Technologies: “Retouching the Palaeolithic: Becoming Human and the Origins of Bone Tool Technology”. Mainz: RGZM, 2018
[7]	Harmand S, Lewis J, Feibel C, et al. 3.3-million-year-old stone tools from Lomekwi 3, West Turkana, Kenya. Nature, 2015, 521: 310-315
[8]	Brain CK, Shipman P. Swartkrans chapter - The Swartkrans Bone Tools. In: Brain CK ed. Swartkrans. A Cave's Chronicle of Early Man. Pretoria: Transvaal Mus Monograph, 1993, 8: 195-221
[9]	Backwell LR, D’Errico F. Early hominid bone tools from Drimolen, South Africa. Journal of Archaeological Sciences, 2008, 35: 2880-2894 doi: 10.1016/j.jas.2008.05.017 URL
[10]	van Kolfschoten T, Parfitt SA, Serangeli J, et al. Lower Paleolithic bone tools from the "Spear Horizon" at Schöningen (Germany). Journal of Human Evolution, 2015, 89: 226-263 doi: 10.1016/j.jhevol.2015.09.012 pmid: 26653208
[11]	Hutson JM, Villaluenga A, García-Moreno A, et al. A zooarchaeological and taphonomic perspective of hominin behaviour from the Schöningen 13 II-4 “Spear Horizon”. In: García-Moreno A, Hutson JM, Smith GM, et al.(eds.). Human behavioural adaptations to interglacial lakeshore environments. Mainz: RGZM, 2020: 43-66
[12]	Lang J, Winsemann J, Steinmetz D, et al. The Pleistocene of Schöningen, Germany: a complex tunnel valley fill revealed from 3D subsurface modelling and shear wave seismics. Quaternary Science Review, 2012, 39: 1-20 doi: 10.1016/j.quascirev.2012.02.003 URL
[13]	Lang J, Böhner U, Polom U. The Middle Pleistocene tunnel valley at Schöningen as a Paleolithic archive. Journal of Human Evolution, 2015, 89: 18-26 doi: 10.1016/j.jhevol.2015.02.004 pmid: 25747317
[14]	Serangeli J, Böhner U, van Kolfschoten T, et al. Overview and new results from large-scale excavations in Schöningen. Journal of Human Evolution, 2015, 89: 27-45 doi: 10.1016/j.jhevol.2015.09.013 pmid: 26596727
[15]	Richter D, Krbetschek M. The age of the Lower Palaeolithic occupation at Schöningen. Journal of Human Evolution, 2015, 89: 46-56 doi: 10.1016/j.jhevol.2015.06.003 pmid: 26212768
[16]	Tucci M, Krahn KJ, Richter D, et al. Evidence for the age and timing of environmental change associated with a Lower Palaeolithic site within the Middle Pleistocene Reinsdorf sequence of the Schöningen coal mine, Germany. Palaeogeography, Palaeoclimatology, Palaeoecology, 2021, 569, 110309
[17]	Thieme H. Lower Palaeolithic hunting spears from Germany. Nature, 1997, 385: 807-810 doi: 10.1038/385807a0
[18]	Conard NJ, Serangeli J, Bigga G, et al. A 300,000-year-old throwing stick from Schöningen, northern Germany, documents the evolution of human hunting. Nature Ecology & Evolution, 2020, 4: 690-693
[19]	Schoch WH, Bigga G, Böhner U, et al. New insights on the wooden weapons from the Paleolithic site of Schöningen. Journal of Human Evolution, 2015, 89: 214-225 doi: 10.1016/j.jhevol.2015.08.004 pmid: 26442632
[20]	Serangeli J, Rodríguez-Álvarez B, Tucci M, et al. The Project Schöningen from an ecological and cultural perspective. Quaternary Science Review, 2018, 198: 140-155 doi: 10.1016/j.quascirev.2018.08.020 URL
[21]	van Kolfschoten T, Buhrs E, Verheijen I. The larger mammal fauna from the Lower Paleolithic Schöningen Spear site and its contribution to hominin subsistence. Journal of Human Evolution, 2015, 89: 138-153 doi: 10.1016/j.jhevol.2015.09.014 pmid: 26607346
[22]	Hutson JM, García-Moreno A, Noack ES, et al. The origins of bone tool technologies:an introduction. In: Hutson JM, García Moreno A, Noack ES, et al.(eds.). The Origins of Bone Tool Technologies: “Retouching the Palaeolithic: Becoming Human and the Origins of Bone Tool Technology”. Mainz: RGZM, 2018: 53-91
[23]	Urban B, Sierralta M, Frechen M. New evidence for vegetation development and timing of Upper Middle Pleistocene interglacials in Northern Germany and tentative correlations. Quaternary International, 2011, 241: 125-142 doi: 10.1016/j.quaint.2011.02.034 URL
[24]	Bigga G, Schoch WH, Urban B. Paleoenvironment and possibilities of plant exploitation in the Middle Pleistocene of Schöningen (Germany). Insights from botanical macro-remains and pollen. Journal of Human Evolution, 2015, 89: 92-104 doi: 10.1016/j.jhevol.2015.10.005 pmid: 26596728
[25]	Mania D. Die fossilen Weichtiere (Mollusken) aus den Beckensedimenten des Zyklus Schöningen II (Reinsdorf-Warmzeit). In: Thieme H (ed.). Die Schöninger Speere - Mensch und Jagd vor 400.000 Jahren. Stuttgart: Theiss Verlag, 2007: 99-104
[26]	Böhme G. Fische, amphibien und reptilien aus dem Mittelpleistozäan (Reinsdorf-Interglazial) von Schöningen (II) bei Helmstedt (Niedersachsen). In: Terberger T, Winghart S(eds.). Die Geologie der paläolithischen Fundstellen von Schöningen. Mainz: RGZM, 2015. 203-265
[27]	van Kolfschoten T. The Palaeolithic locality Schöningen (Germany): A review of the mammalian record. Quaternary International, 2014, 326-327: 469-480
[28]	Kuitems M, van der Plicht J, Drucker DG, et al. Carbon and nitrogen stable isotopes of well-preserved Middle Pleistocene bone collagen from Schöningen (Germany) and their paleoecological implications. Journal of Human Evolution, 2015, 89: 105-113 doi: 10.1016/j.jhevol.2015.01.008 pmid: 25824673
[29]	Serangeli J, Bigga G, Böhner U, et al. Ein Fenster ins Altpaläolithikum. Archäologie in Deutschland, 2012, 4: 6-12
[30]	Peters CAE, van Kolfschoten CATE. 2020. The site formation history of Schöningen 13II-4 (Germany): Testing different models of site formation by means of spatial analysis, spatial statistics and orientation analysis. Journal of Archaeological Sciences, 2020, 114: 105067 doi: 10.1016/j.jas.2019.105067 URL
[31]	Voormolen B. Ancient hunters, modern butchers: Schöningen 13 II-4, a kill-butchery site dating from the northwest European Lower Palaeolithic. Dissertation Leiden University, 2008: 1-145
[32]	García-Moreno A, Hutson J M, Villaluenga A, et al. A detailed analysis of the spatial distribution of Schöningen 13II-4 ‘Spear Horizon’ remains. Journal of Human Evolution, 2021, 152: 102947 doi: 10.1016/j.jhevol.2020.102947 URL
[33]	Abrams G, Bello SM, Di Modica K, et al. When Neanderthals used cave bear (Ursus spelaeus) remains: Bone retouchers from unit 5 of Scladina Cave (Belgium). Quaternary International, 2014, 326-327: 274-287
[34]	Li Z, Wu X, Zhou L, et al. Late Pleistocene archaic human crania from Xuchang, China. Science, 2017, 355: 969-972 doi: 10.1126/science.aal2482 URL
[35]	Zhou GX. Stone age remains from Lingjing, Xuchang of Henan province. Kaogu, 1974, 2: 91-108
[36]	Li Z, Ma H. Techno-typological analysis of the microlithic assemblage at the Xuchang Man site, Lingjing, central China. Quaternary International, 2016, 400: 120-129 doi: 10.1016/j.quaint.2015.08.065 URL
[37]	Li Z, Kunikita D, Kato S. Early pottery from the Lingjing site and the emergence of pottery in northern China. Quaternary International, 2017, 441: 49-61 doi: 10.1016/j.quaint.2016.06.017 URL
[38]	Li Z, Doyon L, Fang H, et al. A Paleolithic bird figurine from the Lingjing site, Henan, China. PLoS ONE, 2020, 15(6): e0233370 doi: 10.1371/journal.pone.0233370 URL
[39]	Nian XM, Zhou LP, Qin JT. Comparisons of equivalent dose values obtained with different protocols using a lacustrine sediment sample from Xuchang, China. Radiat Meas, 2009, 44: 512-516 doi: 10.1016/j.radmeas.2009.06.002 URL
[40]	Li H, Li Z, Gao X, et al. Technological behavior of the early Late Pleistocene archaic humans at Lingjing (Xuchang, China). Archaeological and Anthropological Sciences, 2019, 11: 3477-3490 doi: 10.1007/s12520-018-0759-7
[41]	Zhao Q, Ma H, Bae C J. New discoveries from the early Late Pleistocene Lingjing site (Xuchang). Quaternary International, 2020, 563: 87-95 doi: 10.1016/j.quaint.2019.12.010 URL
[42]	Doyon L, Li Z, Li H, et al. Discovery of circa 115,000-year-old bone retouchers at Lingjing, Henan, China. PLoS ONE, 2018, 13: e0194318 doi: 10.1371/journal.pone.0194318 URL
[43]	Doyon L, Li H, Li Z, et al.. Further evidence of organic soft hammer percussion and pressure retouch from Lingjing (Xuchang, Henan, China). Lithic Technology, 2019, 44: 100-117 doi: 10.1080/01977261.2019.1589926
[44]	Li Z. A primary study on the stone artifacts of Lingjing site excavated in 2005. Acta Anthropologica Sinica, 2007, 26: 138-154
[45]	Trinkhaus E, Wu X-J. External auditory exostoses in the Xuchang and Xujiayao human remains: Patterns and implications among eastern Eurasian Middle and Late Pleistocene crania. PLoS ONE, 2017, 12: e0189390 doi: 10.1371/journal.pone.0189390 URL
[46]	Martinón-Torres M, Wu X, Bermúdez de Castro JM, et al. Homo sapiens in the Eastern Asian Late Pleistocene. Current Anthropology, 2017, 58: 434-448
[47]	Li Z, Dong W. Mammalian fauna from the Lingjing Paleolithic site in Xuchang, Henan Province. Acta Anthropologica Sinica, 2007, 26: 345-360
[48]	Zhang SQ. Taphonomic study of the faunal remains from the Lingjing Site, Xuchang, Henan Province Dissertation Institute of Vertebrate Paleontology and Paleoanthropology, the Chinese Academy of Sciences, 2009: 1-216 (in Chinese).
[49]	Wang W, Li Z, Song G, et al. A study of possible hyaena coprolites from the Lingjing site, Central China. Acta Anthropologica Sinica, 2015, 34: 117-125
[50]	van Kolfschoten T, Li Z, Wang H, et al. The Middle Palaeolithic site of Lingjing (Xuchang, Henan, China): Preliminary new results. In: Klinkenberg V, van Oosten R, van Driel-Murray C(eds.). A Human Environment Studies in honour of 20 years Analecta editorship by prof dr Corrie Bakels. Analecta Praehistoria Leidensia, 2020, 50: 21-28
[51]	Wang H, Li Z, Tong H, et al. Hominin paleoenvironment in East Asia: The Middle Paleolithic Xuchang-Lingjing (China) mammalian evidence. Quaternary International, 2021: https://doi.org/10.1016/j.quaint.2021.11.024
[52]	Zhang S, Li Z, Zhang Y, et al. Cultural Modifications on the Animal Bones from the Lingjing Site, Henan Province. Acta Anthropologica Sinica, 2011, 30: 313-326
[53]	Zhang S, Gao X, Zhang Y, et al. Taphonomic analysis of the Lingjing fauna and the first report of a Middle Paleolithic kill-butchery site in North China. Chinese Science Bulletin, 2011, 56: 3213-3219
[54]	Li H, Li Z, Lotter MG, et al. Formation processes at the early Late Pleistocene archaic human site of Lingjing, China. J Archaeol Sci, 2018, 96: 73-84 doi: 10.1016/j.jas.2018.05.004 URL
[55]	Li Z, Doyon L, Li H, et al. Engraved bones from the archaic hominin site of Lingjing, Henan Province. Antiquity, 2019, 93: 886-900 doi: 10.15184/aqy.2019.81
[56]	Doyon L, Li Z, Wang H, et al. A 115,000-year-old expedient bone technology at Lingjing, Henan, China. PLoS ONE, 2021, 16(5): e0250156 doi: 10.1371/journal.pone.0250156 URL
[57]	Binford LR. Nunamiut Ethnoarchaeology. New York, Academic press, 1978
[58]	Bonhof WJ, van Kolfschoten T. The metapodial hammers from the Lower Palaeolithic site of Schöningen 13 II-4 (Germany): The results of experimental research. Journal of Archaeological Sciences: Reports, 2021, 35: 102685
[59]	Stahlschmidt MC, Miller CE, Ligouis B, et al. On the evidence for human use and control of fire at Schöningen. Journal of Human Evolution, 2015, 89: 71-91 doi: 10.1016/j.jhevol.2015.07.008 pmid: 26341030
