Structural properties of humeral remains from Jianping, Liaoning province

doi:10.16359/j.cnki.cn11-1963/q.2020.0069

Abstract

Abstract:

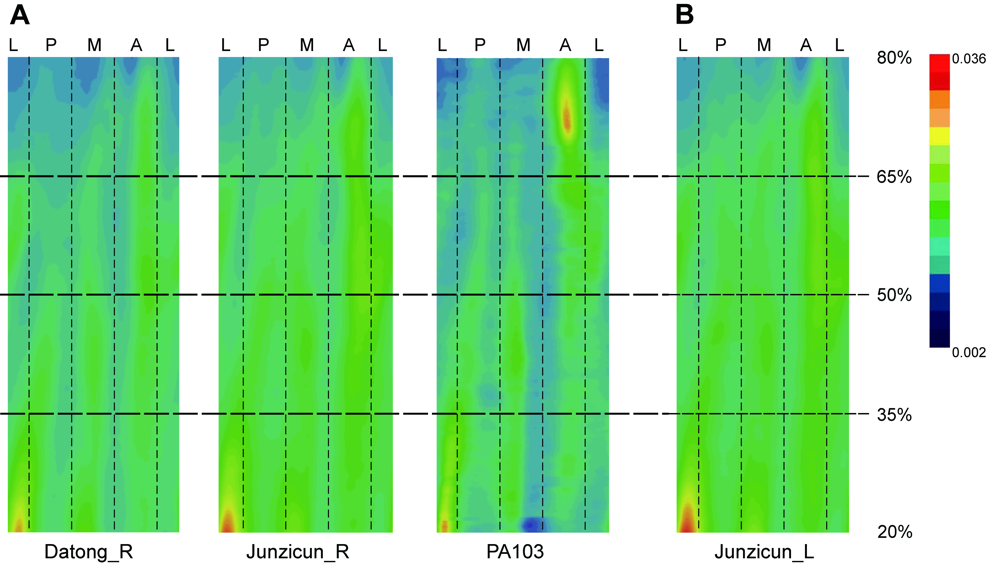

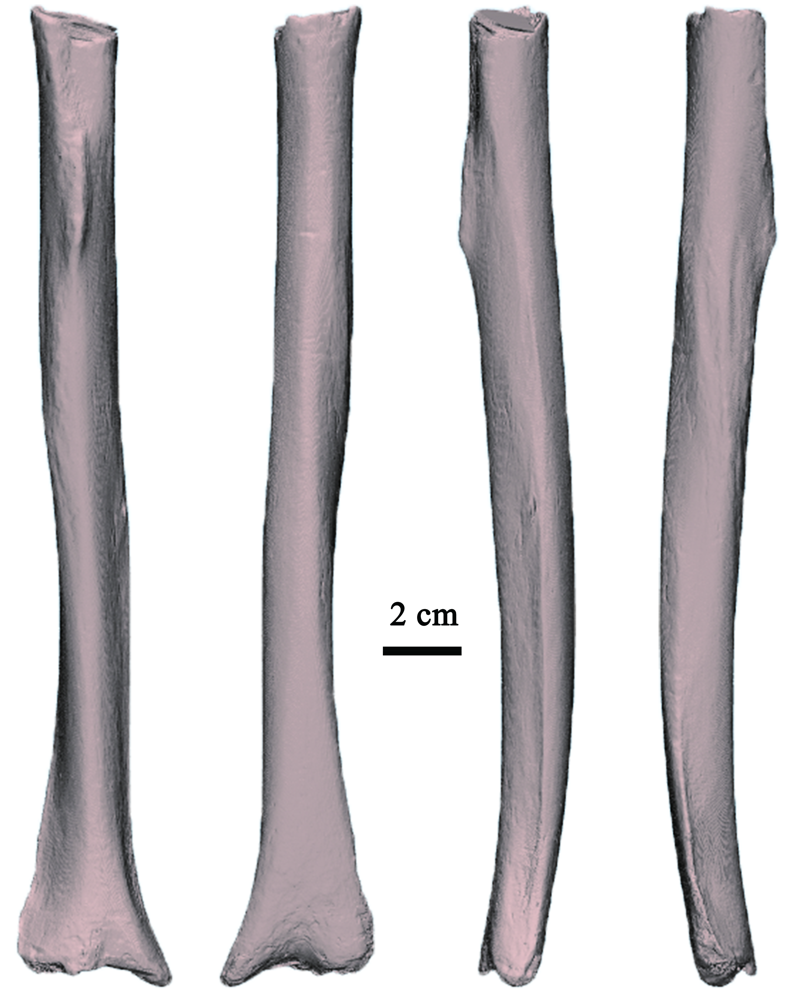

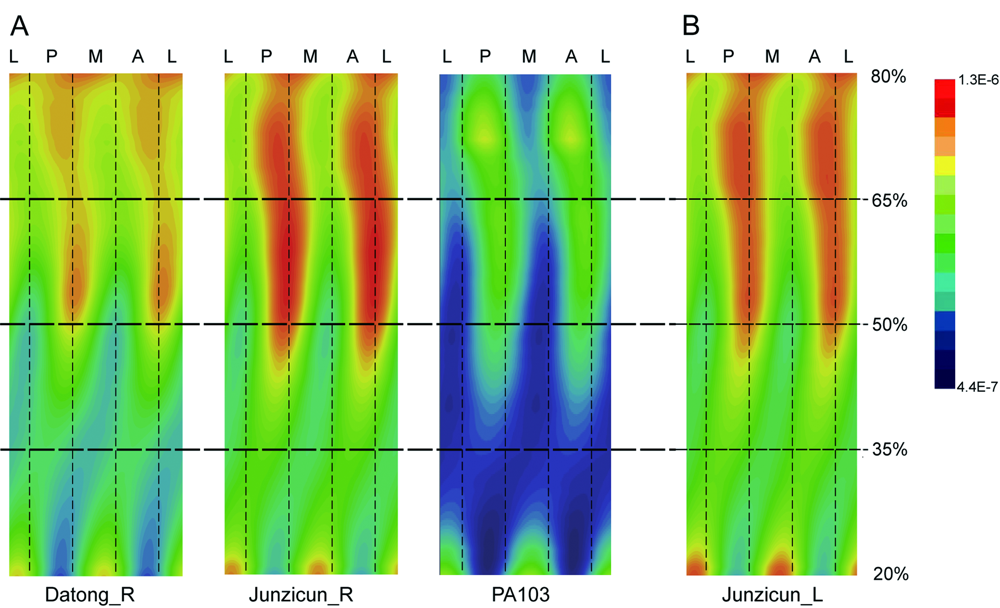

In 1957, one humeral diaphysis of human (PA103) was discovered in Jianping couty, Liaoning province, northern China. According to the comparison of mammal fossils from the same layer, PA103 could be attributed to Late Pleistocene. This specimen has been described in detail. Given the scarcity of upper limb fossil of Late Pleistocene humans from East Asia, a more detailed comparative study is warranted. Here, we provide a comparative assessment of Jianping PA103 humeral inner morphology. Specifically, we analyze the diaphyseal structure of PA103 using micro-computed tomography coupled with methods of cross-sectional geometry and morphometric maps. Cross-sectional properties, continuous cortical bone thickness, and continuous bone strength of PA103 are compared to those of Neandetrals, Middle and Upper Paleolithic modern humans. The PA103 were found to be similar to those of Late Upper Paleolithic in cross-sectional shape of midshaft and biomechanical robusticity. The individual represented by PA103 is more similar to the non-dominant side of comtemporary samples, i.e. biomechanical robusticity and shape index at midshaft. Although the distribution pattern of cortical bone thickness and bone strength in modern human is similar, the cortical thickness of the humeral diaphysis do not seem to correlate strongly with bone strength. Thus, caution is warranted when equating the cortical thickness of a long bone diaphysis to its overall strength.

Key words: Jianping hominin, humeral diaphysis, Biomechanics, Morphometric, Late Pleistocene

CLC Number:

Q981

WEI Pianpian, ZHAO Yuhao, HE Jianing. Structural properties of humeral remains from Jianping, Liaoning province[J]. Acta Anthropologica Sinica, 2021, 40(06): 943-954.

Figures/Tables 10

References 22

[1]	刘武, 吴秀杰, 邢松, 等. 中国古人类化石[M]. 北京: 科学出版社, 2014, 264-265
[2]	周明镇, 薛祥煦. 辽宁建平及康平几种更新世晚期哺乳动物化石[J]. 古生物学报, 1958, 6:51-58
[3]	吴汝康. 辽宁建平人类上臂骨化石[J]. 古脊椎动物与古人类, 1960, 2:287-298
[4]	Sparacello VS, Villotte S, Shackelford LL, et al. Patterns of humeral asymmetry among Late Pleistocene humans[J]. Comptes Rendus Palevol, 2017, 16:680-689 doi: 10.1016/j.crpv.2016.09.001 URL
[5]	张国文, 胡耀武, 裴德明, 等. 大同南郊北魏墓葬群人骨的稳定同位素分析[J]. 南方文物, 2010, 1:127-131
[6]	Steele DG, MeKern TW. A method for assessment of maximum long bone length and living stature from fragmentary long bones[J]. American Journal of Physical Anthropology, 1969, 31(2):215-227 pmid: 5348797
[7]	Trinkaus E. The palaeopathology of the Ohalo 2 Upper Paleolithic human remains: A reassessment of its appendicular robusticity, humeral asymmetry, shoulder degenerations, and costal lesion[J]. International Journal of Osteoarchaeology, 2018, 28:143-152 doi: 10.1002/oa.v28.2 URL
[8]	Ruff CB. Long bone articular and diaphyseal structural in old world monkeys and apes. I: Locomotor effect[J]. American Journal of Physical Anthropology, 2002, 119:305-342 doi: 10.1002/(ISSN)1096-8644 URL
[9]	Ruff CB, Hayes WC. Cross-sectional geometry of Pecos Pueblo femora and tibiae - A biomechanical investigation: I. Method and general patterns of variation[J]. American Journal of Physical Anthropology, 1983, 60:359-381 pmid: 6846510
[10]	Ruff CB, Trinkaus E, Walker A, et al. Postcranial robusticity in Homo. I: Temporal trends and mechanical interpretation[J]. American Journal of Physical Anthropology, 1993, 91:21-53 pmid: 8512053
[11]	Ruff CB. Biomechanical analyses of archaeological human skeletons[A]. In: Katzenberg MA, Saunders SR(Eds.). Biological Anthropology of the Human Skeleton (2nd edition)[M]. New Jersey: John Wiley & Sons, Inc. 2008, 183-206
[12]	Churchill SE. Human upper body evolution in the Eurasian Later Pleistocene[D]. Albuquerque: University of New Mexico, 1994: 111-123
[13]	Bondioli L, Bayle P, Dean C, et al. Technical note: Morphometric maps of long bone shafts and dental roots for imaging topographic thickness variation[J]. American Journal of Physical Anthropology, 2010, 142:328-334 doi: 10.1002/ajpa.21271 pmid: 20229503
[14]	Morimoto N, Ponce de Leon MS, Zollikofer CP. Exploring femoral diaphyseal shape variation in wild and captive chimpanzees by means of morphometric mapping: a test of Wolff’s law[J]. The Anatomical Record, 2011, 294:589-609 doi: 10.1002/ar.21346 pmid: 21328564
[15]	Wei P, Wallace IJ, Jashashvili T, et al. Structural analysis of the femoral diaphyses of an early modern human from Tianyuan Cave, China[J]. Quaternary International, 2017, 434:48-56 doi: 10.1016/j.quaint.2015.10.099 URL
[16]	Jashashvili T, Dowdeswell MR, Lebrun R, et al. Cortical structure of hallucal metatarsals and locomotor adaptations in hominoids[J]. PLOS ONE, 2015, 10:e0117905
[17]	吴汝康, 吴新智, 张振标. 人体测量方法[M]. 北京: 科学出版社, 1984, 61-64
[18]	Bräuer G. Anthropologie[A]. In: Knussman R(Eds.). Anthropologie[M]. Stuttgart: Fischer Verlag, 1988: 160-232
[19]	Rhodes JA, Knüsel CJ. Activity-related skeletal change in medieval humeri: Cross-sectional and architectural alterations[J]. American Journal of Physical Anthropology 128, 2005, 536-546
[20]	Main RP. Ontogenetic relationships between in vivo strain environment, bone histomorphometry and growth in the goat radius[J]. Journal of Anatomy, 2007, 210:272-293 doi: 10.1111/joa.2007.210.issue-3 URL
[21]	Haapasalo H, Kontulainem S, Sievänen H, et al. Exercise-induced bone gain is due to enlargement in bone size without a change in volumetric bone density: A peripheral quantitative computed tomography study of the upper arms of male tennis players[J]. Bone, 2000, 27:351-357 pmid: 10962345
[22]	Warden SJ, Mantila SM, Kersh ME, et al. Physical activity when young provides lifelong benefits to cortical bone size and strength in men[J]. Proceedings of the National Academy of Sciences, 2014, 111:5337-5342 doi: 10.1073/pnas.1321605111 URL

分组/Group	标本号/No.
尼安德特人/ Neandertals	La Chapelle-aux-S. 1, La Ferrassie 1, La Ferrassie 2, Kebara 2, Lezetxiki 1, Palomas 92, Palomas 96, La Quina 5, Regourdou 1, St.-Césaire 1, Shanidar 3, Shanidar 4, Shanidar 6, Spy 2, Tabun 1
旧石器中期现代人/ Middle Paleolithic modern humans	Qafzeh 8, Qafzeh 9, Skhul 2, Skhul 4, Skhul 5
旧石器晚期早/中段现代人/ Early/Middle Upper Paleolithic	Barma Grande 5, Bausu da Ture 2, Cro-Magnon 4294, Cro-Magnon 4293, Dolní Věstonice 3, Dolní Věstonice 13, Dolní Věstonice 14, Dolní Věstonice 16, Grotte-des-Enfants 4, Grotte-des-Enfants 5, Mladeč 24, Mittlere Klause 1, Nazlet Khater 2, Nahal En'Gev 1, Ostuni 1, Paglicci 25, Pataud 3, Pataud 5, Paviland 1, Pavlov 1, Předmostí 3, Předmostí 4, Předmostí 9, Předmostí 10, Předmostí 14, Sunghir 1, Tianyuan1
欧亚大陆西部旧石器晚期晚段现代人/ Western Eurasia Late Upper Paleolithic	Arene Candide 2, Arene Candide 3, Arene Candide 4, Arene Candide 5, Arene Candide 10, Arene Candide 12, Arene Candide 14, Cap Blanc 1, Chancelade 1, Continenza 1, Ein Gev 1, Farincourt 1, Lafaye 1, Laugerie Basse unn., Madeleine 1, Mataha F-81, Neve David 1, Oberkassel 2, Ohalo 2, Peyrat 5, Placard 16, Romanelli 1, Romanelli 4, Romito 1, Romito 3, Romito 4, St-Germain-la-R. 4, San Teodoro 1, Villabruna 1
欧亚大陆东部旧石器晚期晚段现代人/ Eastern Eurasia Late Upper Paleolithic	Minatogawa 1, Minatogawa 2, Minatogawa 3, Minatogawa 4, Tam Hang 2, Tam Hang 3, Tam Hang 7, Tam Hang 11, Tam Hang 13, Tam Hang 14
非洲北部旧石器晚期晚段现代人/ North Africa Late Upper Paleolithic	Afalou 1, Afalou 2, Afalou 3, Afalou 10, Afalou 11, Afalou 13, Afalou 25, Afalou 27, Afalou 28, Sahaba 10, Sahaba 16, Sahaba 19, Sahaba 20, Sahaba 22, Sahaba 25, Sahaba 28, Sahaba 38, Sahaba 39, Sahaba 40, Sahaba 102, Wadi Halfa 1, Wadi Halfa 3, Wadi Halfa 11, Wadi Halfa 12, Wadi Halfa 14, Wadi Halfa 24, Wadi Halfa 25, Wadi Halfa 26, Wadi Halfa 28, Wadi Halfa 31, Wadi Halfa 32, Wadi Halfa 34, Wadi Halfa 36, Wadi Halfa 37

分组/Group	标本号/No.
尼安德特人/ Neandertals	La Chapelle-aux-S. 1, La Ferrassie 1, La Ferrassie 2, Kebara 2, Lezetxiki 1, Palomas 92, Palomas 96, La Quina 5, Regourdou 1, St.-Césaire 1, Shanidar 3, Shanidar 4, Shanidar 6, Spy 2, Tabun 1
旧石器中期现代人/ Middle Paleolithic modern humans	Qafzeh 8, Qafzeh 9, Skhul 2, Skhul 4, Skhul 5
旧石器晚期早/中段现代人/ Early/Middle Upper Paleolithic	Barma Grande 5, Bausu da Ture 2, Cro-Magnon 4294, Cro-Magnon 4293, Dolní Věstonice 3, Dolní Věstonice 13, Dolní Věstonice 14, Dolní Věstonice 16, Grotte-des-Enfants 4, Grotte-des-Enfants 5, Mladeč 24, Mittlere Klause 1, Nazlet Khater 2, Nahal En'Gev 1, Ostuni 1, Paglicci 25, Pataud 3, Pataud 5, Paviland 1, Pavlov 1, Předmostí 3, Předmostí 4, Předmostí 9, Předmostí 10, Předmostí 14, Sunghir 1, Tianyuan1
欧亚大陆西部旧石器晚期晚段现代人/ Western Eurasia Late Upper Paleolithic	Arene Candide 2, Arene Candide 3, Arene Candide 4, Arene Candide 5, Arene Candide 10, Arene Candide 12, Arene Candide 14, Cap Blanc 1, Chancelade 1, Continenza 1, Ein Gev 1, Farincourt 1, Lafaye 1, Laugerie Basse unn., Madeleine 1, Mataha F-81, Neve David 1, Oberkassel 2, Ohalo 2, Peyrat 5, Placard 16, Romanelli 1, Romanelli 4, Romito 1, Romito 3, Romito 4, St-Germain-la-R. 4, San Teodoro 1, Villabruna 1
欧亚大陆东部旧石器晚期晚段现代人/ Eastern Eurasia Late Upper Paleolithic	Minatogawa 1, Minatogawa 2, Minatogawa 3, Minatogawa 4, Tam Hang 2, Tam Hang 3, Tam Hang 7, Tam Hang 11, Tam Hang 13, Tam Hang 14
非洲北部旧石器晚期晚段现代人/ North Africa Late Upper Paleolithic	Afalou 1, Afalou 2, Afalou 3, Afalou 10, Afalou 11, Afalou 13, Afalou 25, Afalou 27, Afalou 28, Sahaba 10, Sahaba 16, Sahaba 19, Sahaba 20, Sahaba 22, Sahaba 25, Sahaba 28, Sahaba 38, Sahaba 39, Sahaba 40, Sahaba 102, Wadi Halfa 1, Wadi Halfa 3, Wadi Halfa 11, Wadi Halfa 12, Wadi Halfa 14, Wadi Halfa 24, Wadi Halfa 25, Wadi Halfa 26, Wadi Halfa 28, Wadi Halfa 31, Wadi Halfa 32, Wadi Halfa 34, Wadi Halfa 36, Wadi Halfa 37

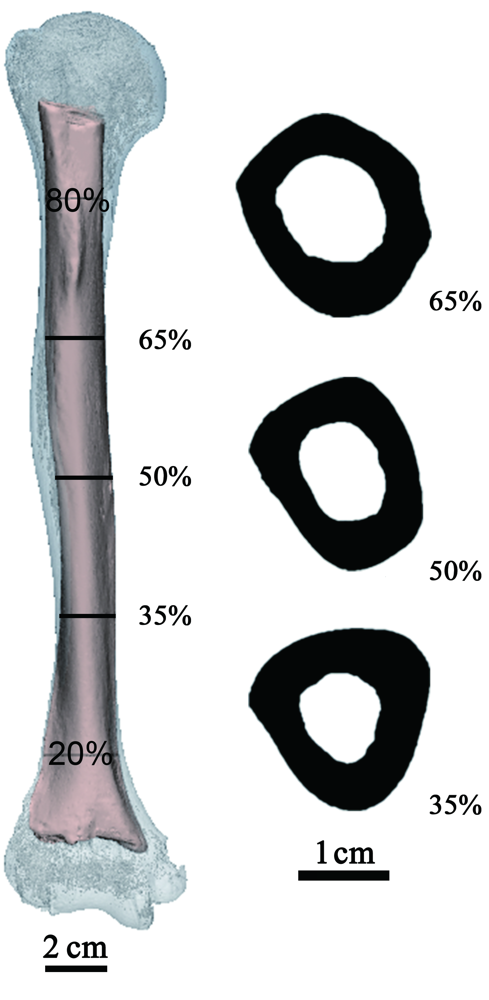

肱骨骨干横断面位置	截面总面积 S_t(mm²)	骨密质面积 S_c(mm²)	前后侧截面惯性矩 I_x (mm⁴)	内外侧截面惯性矩 I_y (mm⁴)	最大截面惯性矩 I_max(mm⁴)	最小截面惯性矩 I_min (mm⁴)	前后侧截面抵抗矩 Z_x (mm³)	内外侧截面抵抗矩 Z_y (mm³)	极截面惯性矩 J (mm⁴)	极截面抵抗拒 Z_p (mm³)
35%	268.6	210.9	5857.1	5339.9	5858.9	5338.1	559.4	522.3	11197.0	1059.9
50%	299.5	222.9	7891.4	6029.1	8611.7	5308.8	716.1	578.1	13920.5	1247.4
65%	333.0	236.3	8869.7	7497.0	9481.7	6885.0	799.3	695.1	16366.7	1425.3

肱骨骨干横断面位置	截面总面积 S_t(mm²)	骨密质面积 S_c(mm²)	前后侧截面惯性矩 I_x (mm⁴)	内外侧截面惯性矩 I_y (mm⁴)	最大截面惯性矩 I_max(mm⁴)	最小截面惯性矩 I_min (mm⁴)	前后侧截面抵抗矩 Z_x (mm³)	内外侧截面抵抗矩 Z_y (mm³)	极截面惯性矩 J (mm⁴)	极截面抵抗拒 Z_p (mm³)
35%	268.6	210.9	5857.1	5339.9	5858.9	5338.1	559.4	522.3	11197.0	1059.9
50%	299.5	222.9	7891.4	6029.1	8611.7	5308.8	716.1	578.1	13920.5	1247.4
65%	333.0	236.3	8869.7	7497.0	9481.7	6885.0	799.3	695.1	16366.7	1425.3

标本Specimens	35%生物力学粗壮度J（标准化）		50%生物力学粗壮度J（标准化）
标本Specimens	利手侧Handy	不利手侧Not handy	利手侧Handy	不利手侧Not handy
PA103	11.3		14.0
Nea	19.8±0.7(3)^b	10.8±3.2(4)	24.9±4.0(2)	14.6±3.7(2)
MPMH	5.3±2.6(2)	5.6(1)	7.5(1)	5.8(1)
EUP	11.6±4.1(10)	9.8±2.6(12)	12.7±3.2(11)	10.2±2.3(11)
WEL	17.0±5.0(19)	12.3±4.2(16)	21.0±5.8(14)	14.2±3.4(14)
EEL	13.4±2.1(9)	11.5±2.4(7)	15.9±3.4(6)	14.2±3.4(6)
NAL	14.4±4.0(22)	10.7±2.4(23)	16.0±4.0 (23)	12.9±3.3 (23)
K-W^b P	0.002 (H=19.082, f (d)=5)	0.199 (H=7.298, f (d)=5)	0.001 (H=21.474, f (d)=5)	0.016(H=13.872, f (d)=5)
