Antler fossil of Sinomegaceros ordosianus from Nanbaishan site of Late Pleistocene age in Yüxian, Hebei Province

doi:10.16359/j.1000-3193/AAS.2023.0001

Abstract

Abstract:

Giant deer is among the most common animals of Mid-Late Pleistocene sites in northern China, and was one of the representative icons of the Pleistocene fauna in northern China, while the fossil materials are fairly poor and very few complete antlers were ever recovered, except those from Zhoukoudian site; on the other hand, the knowledge about the age-related changes of the antlers is absolutely insufficient. Therefore, the previous taxonomic work based only on the antler features is open to questions.

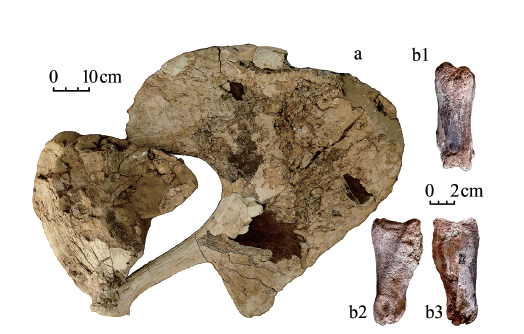

In 2018, a quite complete antler of giant deer was recovered from the Nanbaishan site of Middle Paleolithic period in Yüxian County, Hebei Province. The antler is quite big; brow tine and the palmation of beam are thin and fan-like, without palm tines; the brow tine and the palmation of beam run along two nearly parallel planes, but are not exactly parallel; the shaft of the beam bends at the basal part, but the sigmoid form is not prominent. In general morphology, the new antler is very close to that of Sinomegaceros ordosianus. The new specimen represents the most complete antler of S. ordosianus ever recovered. The dimensions (L: length & W: width) of the palmate is 670×526.8 mm; the dimensions (L& W) of the brow tine is 510×480 mm, the length and circumference of the beam are 270 and 193 mm respectively, the circumference of the burr is 310 mm. The first phalanx is robust, its greatest length is 77.7 mm; proximal width is 29.2 mm, transverse and antero-posterior diameters are 24.0 and 26.0 mm respectively.

In China, quite a number of megalocerine taxa had been named at the species and subspecies levels, namely Sinomegaceros pachyosteus, S. ordosianus, S. flabellatus, S. konwanlinensis, S. youngi, S. luochuanensis, S. sangganhoensis, S. o. mentougouensis and S. baotouensis, among which S. ordosianus is the most widely distributed species and has the richest fossil records. On the contrary, S. baotouensis is the least known species which only represented by one shed antler and one metatarsal bone. With only a few exceptions, e.g. Tangshan near Nanjing, Zhoushan island in Zhejiang and Hualong Cave in Anhui, all the other megalocerine fossil sites in China occur north of the Yangtze River, and most of them are located in northern China. The fossils of S. ordosianus were frequently appeared in the prehistoric site, which indicates that the giant deer was very probably among the food sources of early humans. The OSL age of the Nanbaishan site is around 110 kaBP, which falls into the range of the Middle Paleolithic period.

Key words: Sinomegaceros, antler fossil, Nanbaishan site, Late Pleistocene, Yüxian, Hebei

CLC Number:

Q915.87

MEI Huijie, ZHANG Bei, LEI Huarui, TONG Haowen. Antler fossil of Sinomegaceros ordosianus from Nanbaishan site of Late Pleistocene age in Yüxian, Hebei Province[J]. Acta Anthropologica Sinica, 2023, 42(02): 225-237.

Figures/Tables 8

References 49

[1]	Vislobokova IA. Morphology, taxonomy, and phylogeny of megacerines (Megacerini, Cervidae, Artiodactyla)[J]. Paleontological Journal, 2013, 47(8): 833-950 doi: 10.1134/S0031030113080017 URL
[2]	Lister AM, Edwards CJ, Nock DAW, et al. The phylogenetic position of the ‘giant deer’ Megaloceros giganteus[J]. Nature, 2005, 438: 850-853 doi: 10.1038/nature04134
[3]	Azzaroli A. The deer of the Weybourn Crag and forest bed of Norfolk[J]. Bulletin of the British Museum (Natural History): Geology, 1953, 2(1): 1-96
[4]	van der Made J, Tong HW. Phylogeny of the giant deer with palmate brow tines Megaloceros from west and Sinomegaceros from east Eurasia[J]. Quaternary International, 2008, 179: 135-162 doi: 10.1016/j.quaint.2007.08.017 URL
[5]	Teilhard de Chardin P, Pei WC. The fossil mammals of Locality 13 in Choukoutien[M]. PalaeontologiaSinica, NewSeries C, 1941, 11: 1-118
[6]	郑龙亭, 黄万波. 和县人遗址[M]. 北京: 中华书局, 2001, 1-126
[7]	董为. 与南京汤山直立人伴生的偶蹄类及其古环境浅析[J]. 人类学学报, 1999, 18(4): 270-281
[8]	胡连荣. 舟山海底哺乳动物化石与古人生存环境[M]. 北京: 中国文史出版社, 2005, 1-172
[9]	同号文, 吴秀杰, 董哲, 等. 安徽东至华龙洞古人类遗址哺乳动物化石的初步研究[J]. 人类学学报, 2018, 37(2): 284-305
[10]	卫奇. 泥河湾层中的大角鹿一新种[J]. 古脊椎动物与古人类, 1983, 21(1): 87-95
[11]	Young CC. On the Artiodactyla from the Sinanthropus site at Chouk’outien[M]. Palaeontologia Sinica, Series C, 1932, 8(2): 1-158
[12]	Lister AM. The evolution of the giant deer, Megaloceros giganteus (Blumenbach)[J]. Zoological Journal of the Linnean Society, 1994, 112: 65-100 doi: 10.1111/zoj.1994.112.issue-1-2 URL
[13]	Pfeiffer T. The first complete skeleton of Megaloceros verticornis (Dawkins, 1868) Cervidae, Mammalia, from Bilshausen (Lower Saxony, Germany): description and phylogenetic implications[J]. Mitteilungen aus dem Museum für Naturkunde in Berlin, Geowissenschaftliche Reihe, 2002, 5(1): 289-308
[14]	Bouehud J. Les Cervidés. In: Lavocat R. (Ed.). Faunes et flores préhistoriques de l’Europe occidental[M]. Éditions N. Boubée & C., Paris, 1966, 244-277
[15]	Tong HW, Chen X, Zhang B. New fossils of Bison palaeosinensis (Artiodactyla, Mammalia) from the steppe mammoth site of Early Pleistocene in Nihewan Basin, China[J]. Quaternary International, 2017, 445: 250-268 doi: 10.1016/j.quaint.2016.07.033 URL
[16]	Shpansky AV. Skeleton of the giant deer Megaloceros giganteus giganteus (Blumenbach, 1803) (Mammalia, Artiodactyla) from the Irtysh Region near Pavlodar[J]. Paleontological Journal, 2014, 48(5): 534-550 doi: 10.1134/S0031030114050104 URL
[17]	Croitor R. Taxonomy, systematics and evolution of giant deer Megaloceros giganteus (Blumenbach, 1799) (Cervidae, Mammalia) from the Pleistocene of Eurasia. Quaternary, 2021, 4(4): 36. https://doi.org/10.3390/quat4040036 doi: 10.3390/quat4040036 URL
[18]	Shikama T, Okafuji G. Quaternary cave and fissure deposits and their fossils in Akiyosi District, Yamaguchi Prefecture[J]. Science Reports of Yokohama National University, Section II, Biology and Geology, 1958, 7: 43-103
[19]	伊·维斯洛博柯娃胡长康. 关于大角鹿类的进化[J]. 古脊椎动物学报, 1990, 28(2): 150-158
[20]	Vislobokova IA. Giant deer: origin, evolution, role in biosphere[J]. Paleontological Journal, 2012, 46(7): 643-775 doi: 10.1134/S0031030112070027 URL
[21]	Kahlke HD. On the evolution of pachyostosis in jaw bones of Choukoutien giant deer Megaceros pachyosteus (Young)[J]. Vertebrata PalAsiatica, 1958, 2(2-3): 117-130
[22]	计宏祥. 中国境内大角鹿属的下颌骨厚度问题[J]. 古脊椎动物学报, 1988, 26(4): 296-302
[23]	Tong HW, Zhang B. New fossils of Eucladoceros boulei (Artiodactyla, Mammalia) from Early Pleistocene Nihewan Beds, China[J]. Palaeoworld, 2019, 28(3): 403-424 doi: 10.1016/j.palwor.2019.05.003 URL
[24]	Chow MC, Hu CK, Lee YC. Mammalian fossils associated with the hominid skull cap of Lantian, Shensi[J]. Scientia Sinica, 1965, 14 (7): 1037-1048 pmid: 5890288
[25]	Teilhard de Chardin P. Fossil mammals from Locality 9 of Choukoutien[M]. PalaeontologiaSinica, SeriesC, 1936, 7(4): 1-70
[26]	薛祥煦. 记洛川大角鹿(新种) Megaloceros luochuanensis (sp. nov.)[J]. 古脊椎动物与古人类, 1982, 20(3): 228-235
[27]	黄万波, 李毅, 聂宗笙. 中国北方新发现的大角鹿化石[J]. 古脊椎动物学报, 1989, 27(1): 53-64
[28]	刘嘉龙, 金福全. 安徽巢县第四纪地层及所含脊椎动物化石新种的特征—巢县动物群(一)[J]. 淮南矿业学院学报, 1982, 1: 16-25
[29]	Jo YS. Mammals of Korea: conservation and management[D]. Lubbock: Texas Tech University, 2015
[30]	Taruno H, Okumura K, Ishida S. Antler morphology of the Yabe’s giant deer revision based on their ontogenetic variation[J]. Bulletin of the Osaka Museum of Natural History, 2019, 73: 37-58
[31]	周明镇, 王元青. 淮南发现的中更新世哺乳动物化石[J]. 北京自然博物馆研究报告, 1988, 41: 1-8
[32]	Pei WC. On the mammalian remains from Locality 3 at Choukoutien[M]. Palaeontologia Sinica, Series C, 7(5): 1-120
[33]	黑龙江省文物管理委员会,哈尔滨世文化局,中国科学院古脊椎动物与古人类研究所东北考察队. 阎家岗旧石器时代晚期古营地遗址[M]. 北京: 文物出版社, 1987, 1-133
[34]	同号文, 李虹, 谢俊义. 萨拉乌苏动物群有关属种的修订与讨论[J]. 第四纪研究, 2008, 28(6): 1106-1113
[35]	裴文中, 吴汝康, 贾兰坡, 等. 山西襄汾县丁村旧石器时代遗址发掘报告[M]. 中国科学院古脊椎动物研究所甲种专刊第二号, 1958, 1-111
[36]	古脊椎动物研究所高等脊椎动物组. 东北第四纪哺乳动物化石志[M]. 中国科学院古脊椎动物研究所甲种专刊第三号, 1959, 1-82
[37]	董为, 李占扬. 河南许昌灵井遗址的晚更新世偶蹄类[J]. 古脊椎动物学报, 2008, 46(1): 31-50
[38]	Lisiecki LE, Raymo M. A Pliocene-Pleistocene stack of 57 globally distributed benthic δ¹⁸O records[J]. Paleoceanography, 2005, 20, PA1003, doi:10.1029/2004PA001071 doi: 10.1029/2004PA001071 URL
[39]	Breuil H. Bone and antler industry of the Choukoutien Sinanthropus site[M]. Palaeontologia Sinica, New Series D, 1939, 6: 1-41
[40]	Binford LR, Ho CK. Taphonomy at a distance: Zhoukoudian, “the cave home of Beijing Man?”[J]. Current Anthropology, 1985, 26(4): 413-442 doi: 10.1086/203303 URL
[41]	Binford LR, Stone NM. Zhoukoudian: a closer look[J]. Current Anthropology, 1986, 27(15): 453-475 doi: 10.1086/203469 URL
[42]	林圣龙. 周口店第一地点的大型哺乳动物化石和北京猿人的狩猎行为[A].见:吴汝康,任美锷,朱显谟,等(主编).北京猿人遗址综合研究[M].北京:科学出版社, 1985, 95-101
[43]	吕遵谔. 海城小孤山仙人洞鱼镖头的复制和使用研究[J]. 考古学报, 1995, 1: 1-17
[44]	Pei WC. The Upper Cave fauna of Choukoutien[M]. Palaeontologia Sinica, New Series C, 1940, 10: 1-100
[45]	Pétillon JM. Les armes de chasse en matières osseuses dans la seconde moitié du Paléolithique récent. Douze millénaires d’histoire technique chez les chasseurs-collecteurs d’Europe occidentale (23000-11000 cal BP)[J]. Bulletin de l’Association archéologique des Pyrénées-Orientales, Association archéologique des Pyrénées-Orientales, 2016, 31: 140-145
[46]	Pétillon JM. Des Magdaléniens en armes. Technologie des armatures de projectile en bois de Cervidé du Magdalénien supérieur de la grotte d’Isturitz (Pyrénées-Atlantiques)[M]. Treignes, CEDARC (Artefacts 10), 2006, 1-302
[47]	Croitor R, Stefaniak K, Paw1owska K, et al. Giant deer Megaloceros giganteus Blumenbach, 1799 (Cervidae, Mammalia) from Palaeolithic of eastern Europe[J]. Quaternary International, 2014, 326-327: 91-104
[48]	Leder D, Hermann R, Hüls M, et al. A 51, 000-year-old engraved bone reveals Neanderthals’ capacity for symbolic behaviour[J]. Nature Ecology & Evolution, 2021, 5: 1273-1282
[49]	Xu Z, Pei SW, Hu YW, et al. Stable isotope analysis of mammalian enamel from the Early Pleistocene site of Madigou, Nihewan Basin: Implications for reconstructing hominin paleoenvironmental adaptations in North China[J]. Frontiers in Earth Science, 2021, 9: 789781. doi: 10.3389/feart.2021.789781 doi: 10.3389/feart.2021.789781 URL

属种taxon	河套大角鹿S. ordosianus					肿骨鹿S. pachyosteus	扁角鹿S. flabellatus	洛川大角鹿S. luochuanensis
地点Locality	南柏山 Nanbai- shan	丁村 Dingcun^[35]	周家油坊 Zhoujia- youfang^[36]	闫家岗 Yanjia- gang^[33]	灵井Lingjing^[37]	周口店 ZKD 1^[11]	周口店 ZKD 13^[5]	陕西洛川^[26] Luochuan
角总长度L(Antler)	930	-	-	-	-	260-576	950-1050	530
角环周长C (Burr)	310	-	-	-	-	-	-	-
角环前后径d(Antero-posterior of burr)	104.7	78.0-99.8	62.0-94.8	41.1-91.5	103.3	74-94	-	65
角环内外径d(Medial-lateral of burr)	96.4	74.0-99.0	68.2-95.5	49.0-97.1	98.2	-	-	54
眉枝最大高H_max(Brow tine)	480	-	-	-	-	-	350-530	174
眉枝最大宽b_max(Brow tine)	510	-	-	-	-	-	250-300	260
眉枝基部宽b(Base of brow tine)	114.6	74.5-88.0	59.5-92.7	43.3-97.2	-	-	-	-
主枝角干周长C (Shaft)	193	-	-	-	-	-	-	-
主枝角干前后径d(Antero-posterior of shaft)	59.8	48.0-51.1	50.4-87.0	32.5-70.5	53.7	46-94	-	56
主枝角干上下(横)径d(Superoinferior of shaft)	56.7	53.3-69.0	51.5-95.0	22.5-56.9	45.3	-	-	42
主枝角干长L(Shaft)	270	-	-	-	-	-	-	120
主枝掌部最大长L_max( Palmation)	526.8	-	-	-	-	-	-	-
主枝掌部最大宽b_max(Palmation)	670	-	-	-	-	-	450	400

属种taxon	河套大角鹿S. ordosianus					肿骨鹿S. pachyosteus	扁角鹿S. flabellatus	洛川大角鹿S. luochuanensis
地点Locality	南柏山 Nanbai- shan	丁村 Dingcun^[35]	周家油坊 Zhoujia- youfang^[36]	闫家岗 Yanjia- gang^[33]	灵井Lingjing^[37]	周口店 ZKD 1^[11]	周口店 ZKD 13^[5]	陕西洛川^[26] Luochuan
角总长度L(Antler)	930	-	-	-	-	260-576	950-1050	530
角环周长C (Burr)	310	-	-	-	-	-	-	-
角环前后径d(Antero-posterior of burr)	104.7	78.0-99.8	62.0-94.8	41.1-91.5	103.3	74-94	-	65
角环内外径d(Medial-lateral of burr)	96.4	74.0-99.0	68.2-95.5	49.0-97.1	98.2	-	-	54
眉枝最大高H_max(Brow tine)	480	-	-	-	-	-	350-530	174
眉枝最大宽b_max(Brow tine)	510	-	-	-	-	-	250-300	260
眉枝基部宽b(Base of brow tine)	114.6	74.5-88.0	59.5-92.7	43.3-97.2	-	-	-	-
主枝角干周长C (Shaft)	193	-	-	-	-	-	-	-
主枝角干前后径d(Antero-posterior of shaft)	59.8	48.0-51.1	50.4-87.0	32.5-70.5	53.7	46-94	-	56
主枝角干上下(横)径d(Superoinferior of shaft)	56.7	53.3-69.0	51.5-95.0	22.5-56.9	45.3	-	-	42
主枝角干长L(Shaft)	270	-	-	-	-	-	-	120
主枝掌部最大长L_max( Palmation)	526.8	-	-	-	-	-	-	-
主枝掌部最大宽b_max(Palmation)	670	-	-	-	-	-	450	400

样品编号Sample	铀含量 U(/10⁶)	钍含量 Th(/10⁶)	钾含量 K(%)	水含量 H₂O(%)	剂量率 Dose rate (Gy/ka)	测片数Number of aliquots	等效剂量 Equivalent dose(Gy)	年龄 Age (kaBP)
18NBS-OSL-01 （东侧East）	1.93±0.04	13.07±0.16	2.06±0.04	15±5	3.70±0.13	7	406.20±6.56	109.9±4.2
18NBS-OSL-02 （西侧West）	2.06±0.05	9.10±0.06	2.10±0.07	15±5	3.42±0.13	7	369.27±7.77	108.1±4.6

样品编号Sample	铀含量 U(/10⁶)	钍含量 Th(/10⁶)	钾含量 K(%)	水含量 H₂O(%)	剂量率 Dose rate (Gy/ka)	测片数Number of aliquots	等效剂量 Equivalent dose(Gy)	年龄 Age (kaBP)
18NBS-OSL-01 （东侧East）	1.93±0.04	13.07±0.16	2.06±0.04	15±5	3.70±0.13	7	406.20±6.56	109.9±4.2
18NBS-OSL-02 （西侧West）	2.06±0.05	9.10±0.06	2.10±0.07	15±5	3.42±0.13	7	369.27±7.77	108.1±4.6
